X-Dipole: Far-field simulations; 15m band.
(Calculations performed using EZNEC+ v5.0)

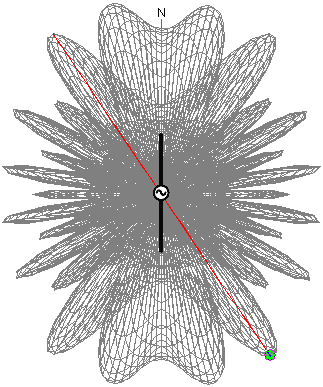

Centre-fed long-wire (Simple dipole feed):
N and S wires driven.
E and W wires unconnected.
Model: x45dipole2.ez (simulation
frequency set to 21.2MHz).

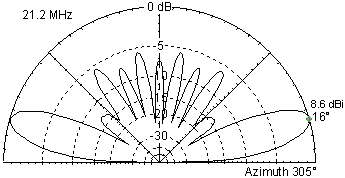

Strong lobes at ±14° from wire direction (8.3dBi,
elevation 12°) and ±35° (8.6dBi, elevation 16°).
Slice through direction marked in red.

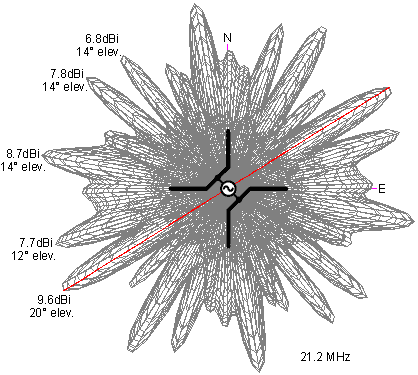

Splayed dipole feed:
N and W wires connected.
S and E wires conneceted.
