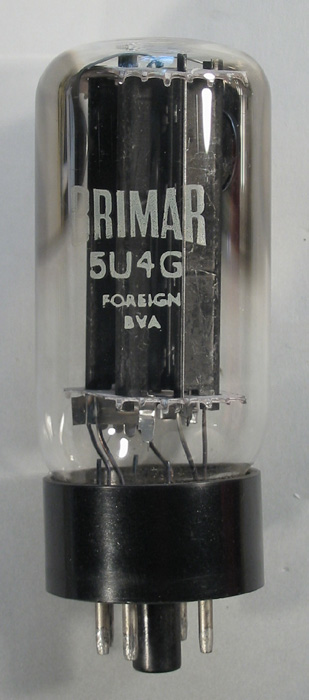

5U4GT

Directly heated full wave octal rectifier

Characteristics

Vf	If	PIV	ia(pk)	Va(max)	Iout(max)	Vout(max)	C§	L	VA-K*
(V)	(A)	(V)	(mA)	(V)	(mA)	(V)	(¼F)	(H)	(V)
5	3	1550	675	550	225	450	16	3	44

§ max capacitor input
min at 140 mA.
* at I_out(max)

_{Base connections}
