Wcon Epoque DCL30

Epoque DCL-30 wide-angle converter

The Epoque DCL30 comes in a version which has concentric M46 and M67 filter threads. The test pictures below were taken using a Canon Ixus 115 camera in an ikelite Ultra-compact housing (2.2" diameter flat port with M46 filter thread). Pictures taken using the camera in air, and underwater via the ikelite housing are given first for comparison purposes.

Canon Ixus 115 and ikelite housing
12 Mp 1/2.3" CMOS.
4000 × 3000 pixel JPEG output.
4× optical zoom 28 - 112 mm (35 mm equiv.)

Test conditions:
Zoom setting: full wide.
35mm equiv. f = 28 mm.
Aperture: f/2.8

Underwater lighting:
2× ikelite Pro 2800 LED video lights.

Note: In order to make corner detail images comparable to those given elsewhere, the pictures were resized to 5 Mp (2582×1937) before cropping.

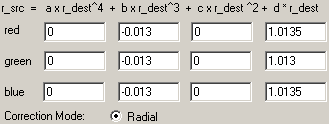

Ixus 115 camera in air (no housing, natural daylight, equiv f = 28 mm))

Radial correction

Pano Tools
radial correction
coefficients

Ixus 115 camera with flat port (equiv. f = 28 mm)

Radia correction

Pano Tools
radial correction
coefficients

________________________________

Epoque DCL-30 M46+M67
concave

Magnification: 0.59×
Configuration: 4 elements, 4 groups.
Dimensions /mm: 96.4 Ø, 52.5 L.
Weight: 595 g air, 345 g UW.
Material: Optical glass, Al alloy body.
dot_bu

Max depth: 60 m

Camera lens: 28 mm f/2.8

Radial correction

Radial correction
coefficients

Collected radial correction coefficients - Epoque DCL-30 with Ixus 115 camera

Lens system	magnif -ication	FOV	Geometry				Aberration
Lens system	magnif -ication	FOV	a	b	c	a+b+c	Δd_red	Δd_blue
Camera + flat port		54.3°	0	0.03	0	0.03	-0.001	0.005
Camera	1	75.3°	0	-0.013	0	-0.013	0.0005	0.0005
Port (f = 28mm)			0	0.043	0	0.043	-0.002	0.0045
DCL-30	0.59		0.015	-0.08	0	-0.065	0	0.003

The DCL-30 gives significant correction for the flat lens port, but there remains a considerable blue-yellow fringing even though the adapter is being used within its design limits. This is consistent with the lens entrance pupil being placed some distance behind the port at the wide-angle zoom setting; i.e., it is not a fault of the lens, it is a limitation imposed by the 4× zoom range of the camera.
