G3YNH Misc. Nixie Tubes

RS Components Ltd. (formerly RadioSpares)
RS Number Tube

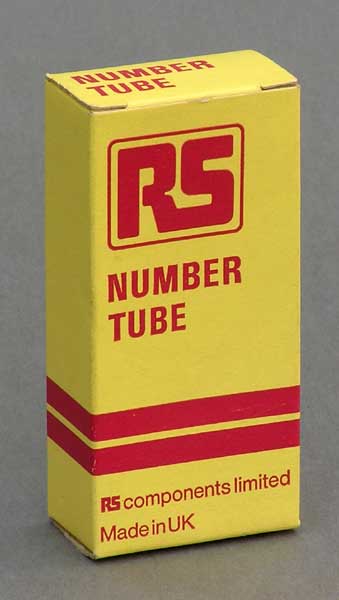

RS Number tube RS box. RS base

Recommended Operating Conditions
Maintaining Voltage . . . . . . . . . . . . . . 140V nom.
Cathode Current, Numerals  . . . . . . . . 2.0mA
Decimal Points . . . . . . . . . . . . . . . . . . 0.4mA
Anode Series Resistor / kΩ = (HT Voltage - 140) / 2.4
Note:- The leads should not be soldered closer than 5mm, or bent closer than 1.5mm from the base.

Photo Right:
© Andy Cowley,
M1EBV, 2005

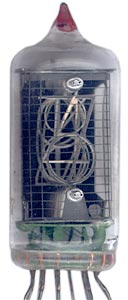

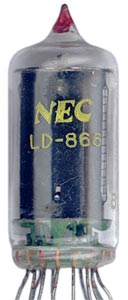

NEC LD-866



No data available.
Salvaged from an old transistor (pre-IC) desktop calculator.

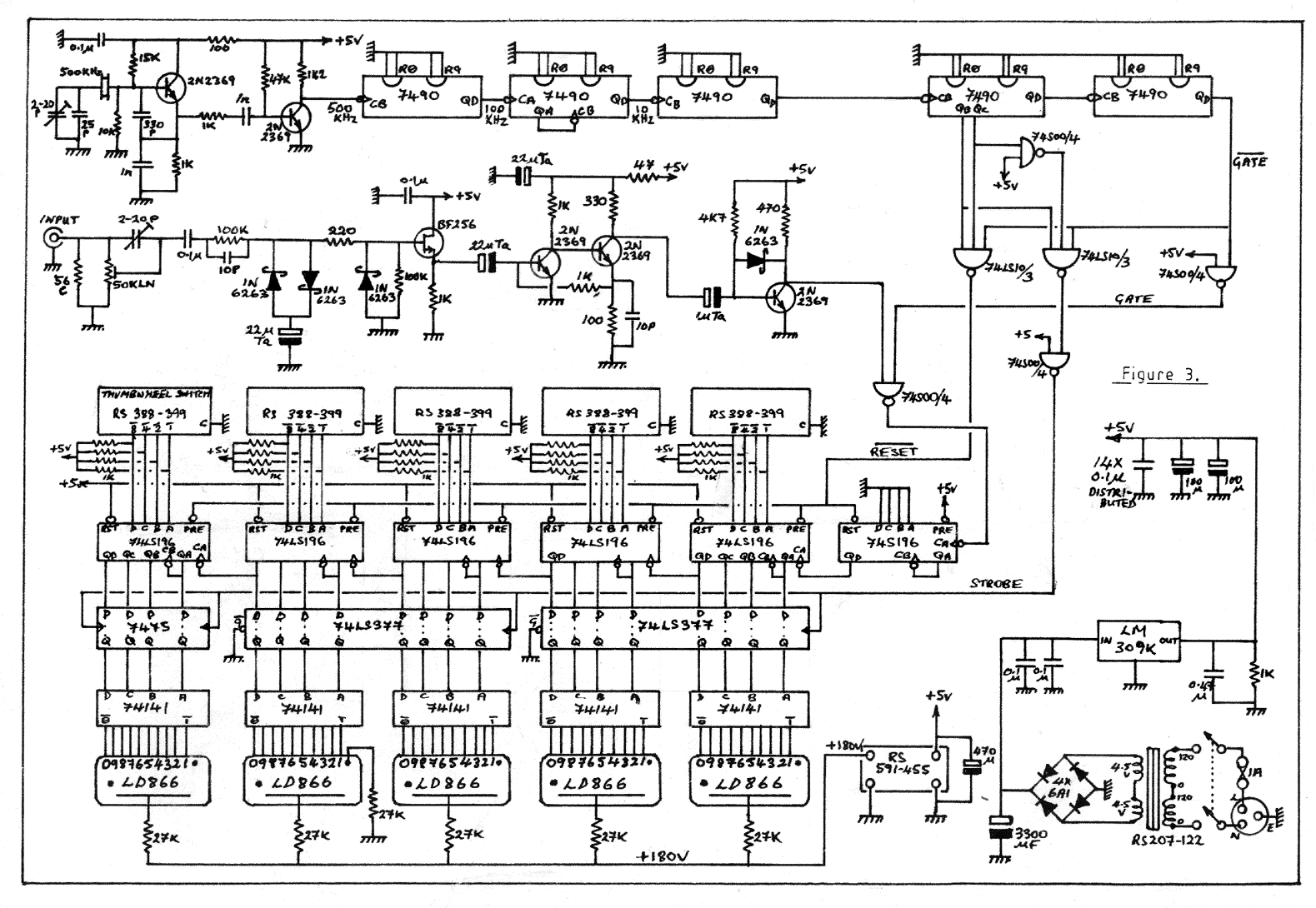

Used successfully in digital counter circuit.
